Order Guide

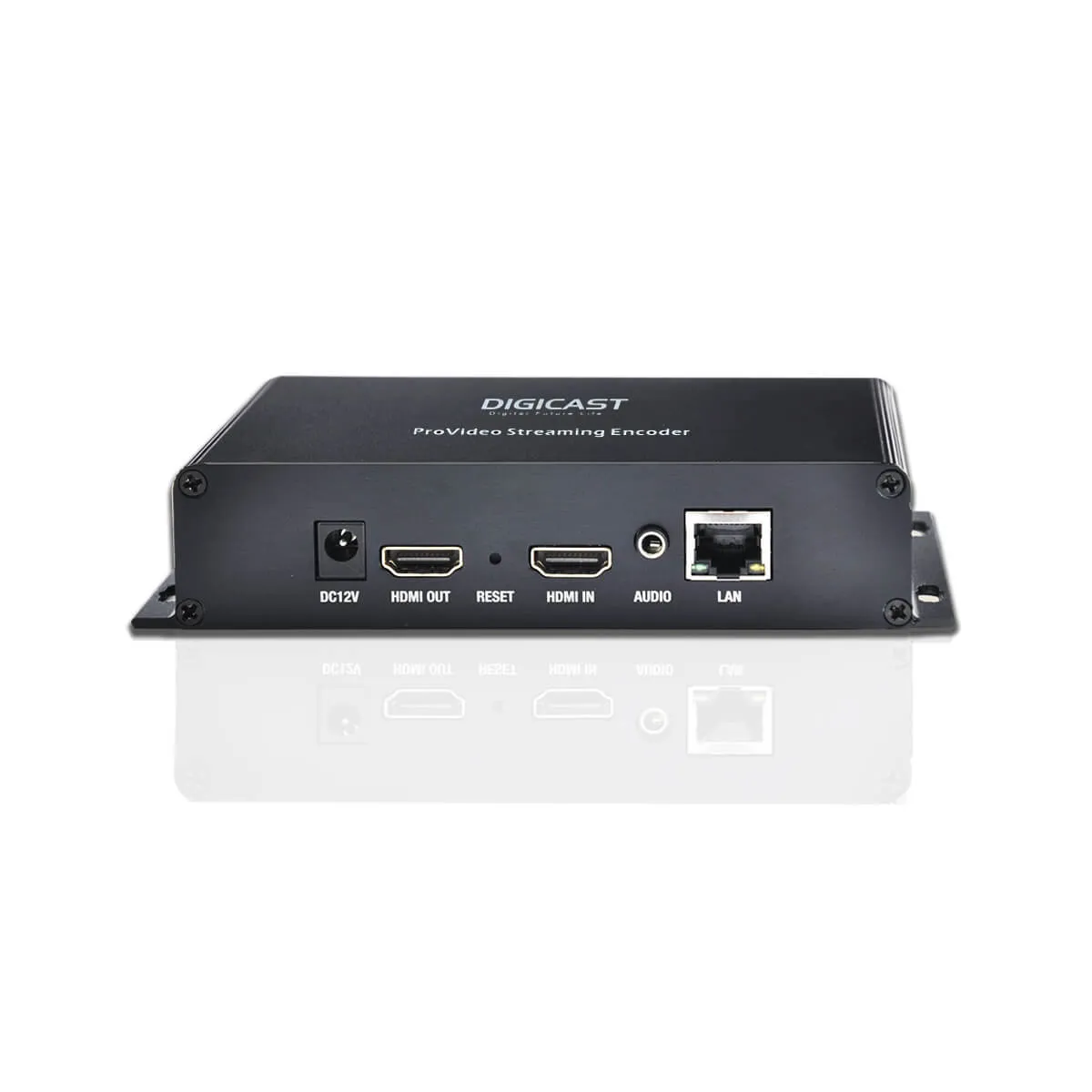

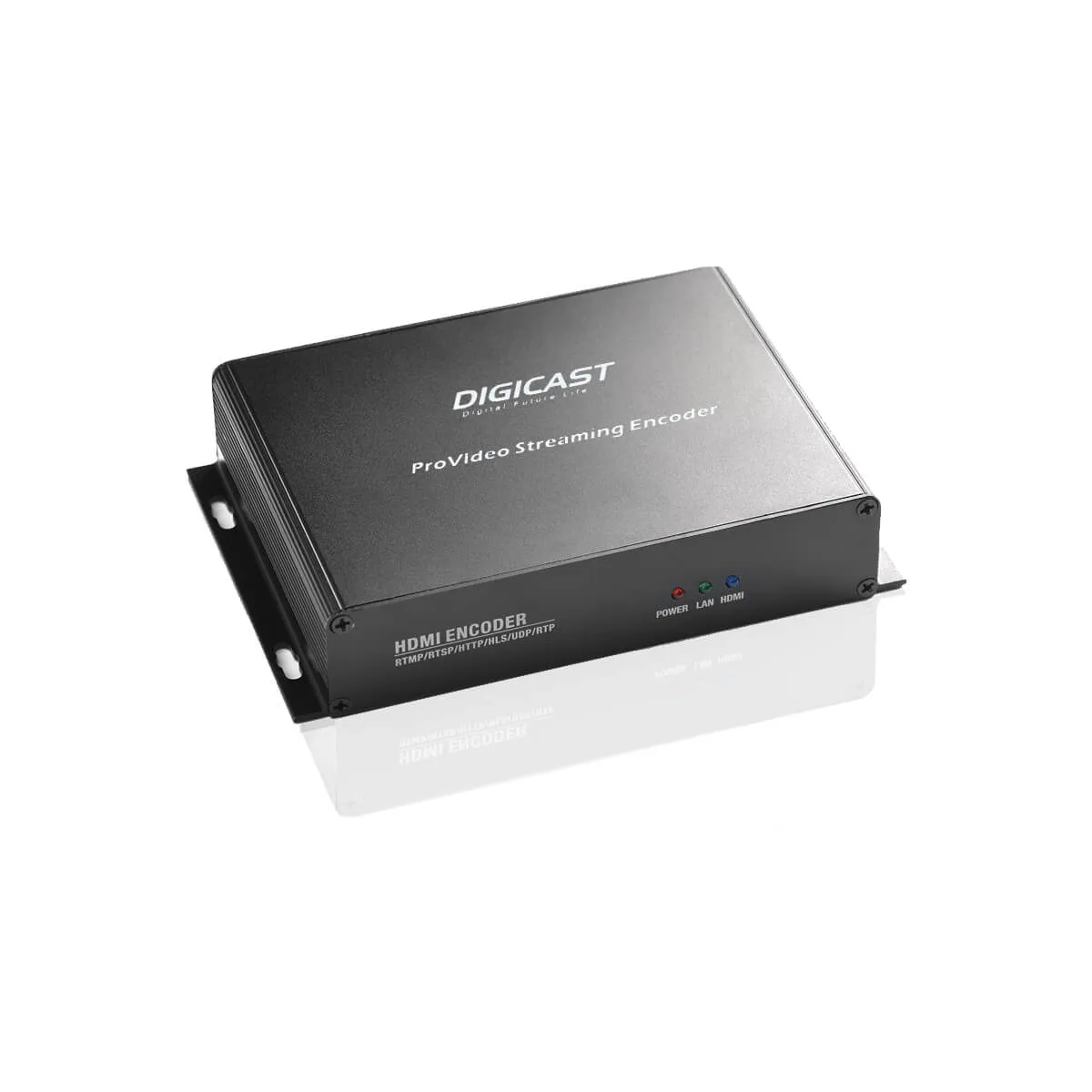

DMB-8800A Classic ProVideo Streaming Encoder(HDMI in)

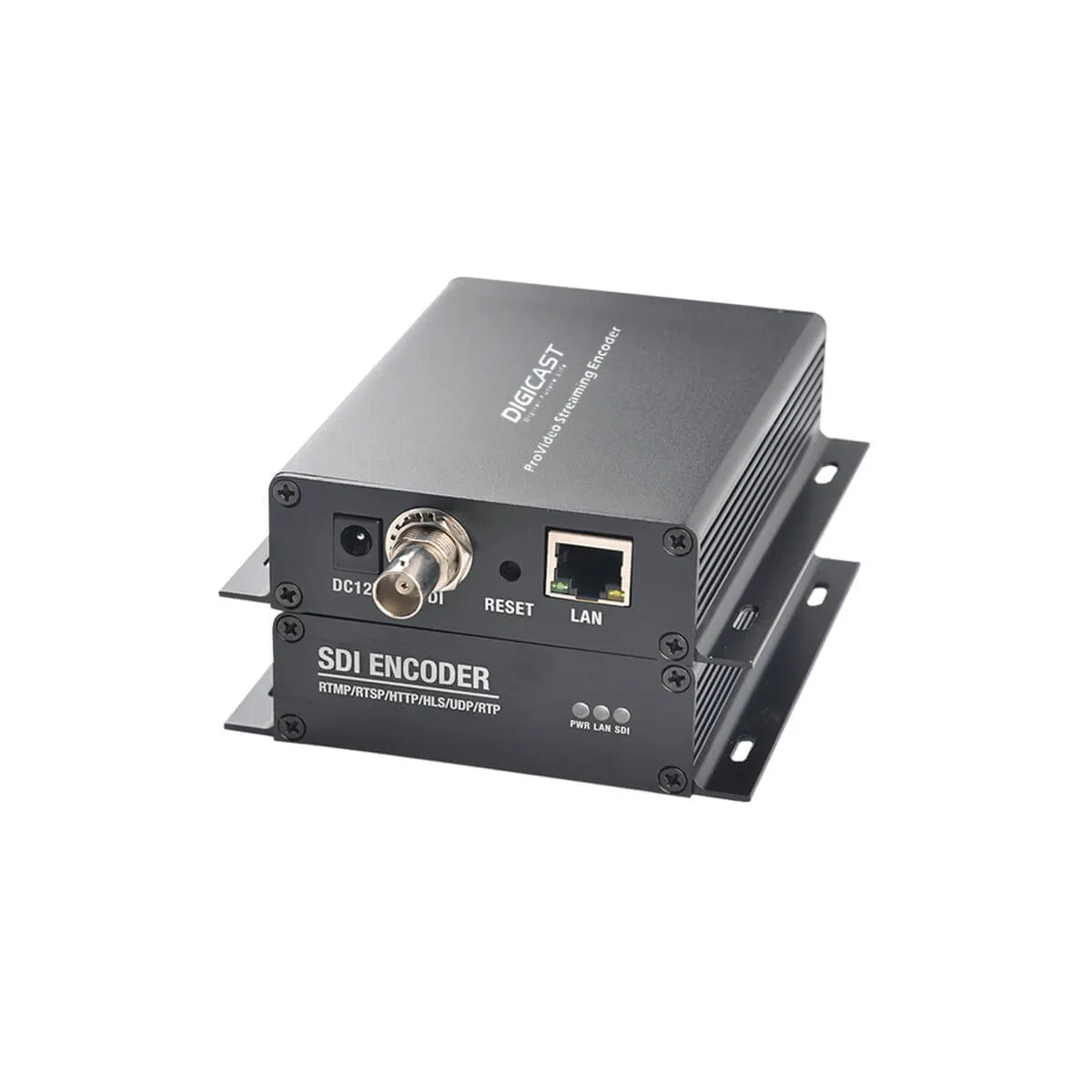

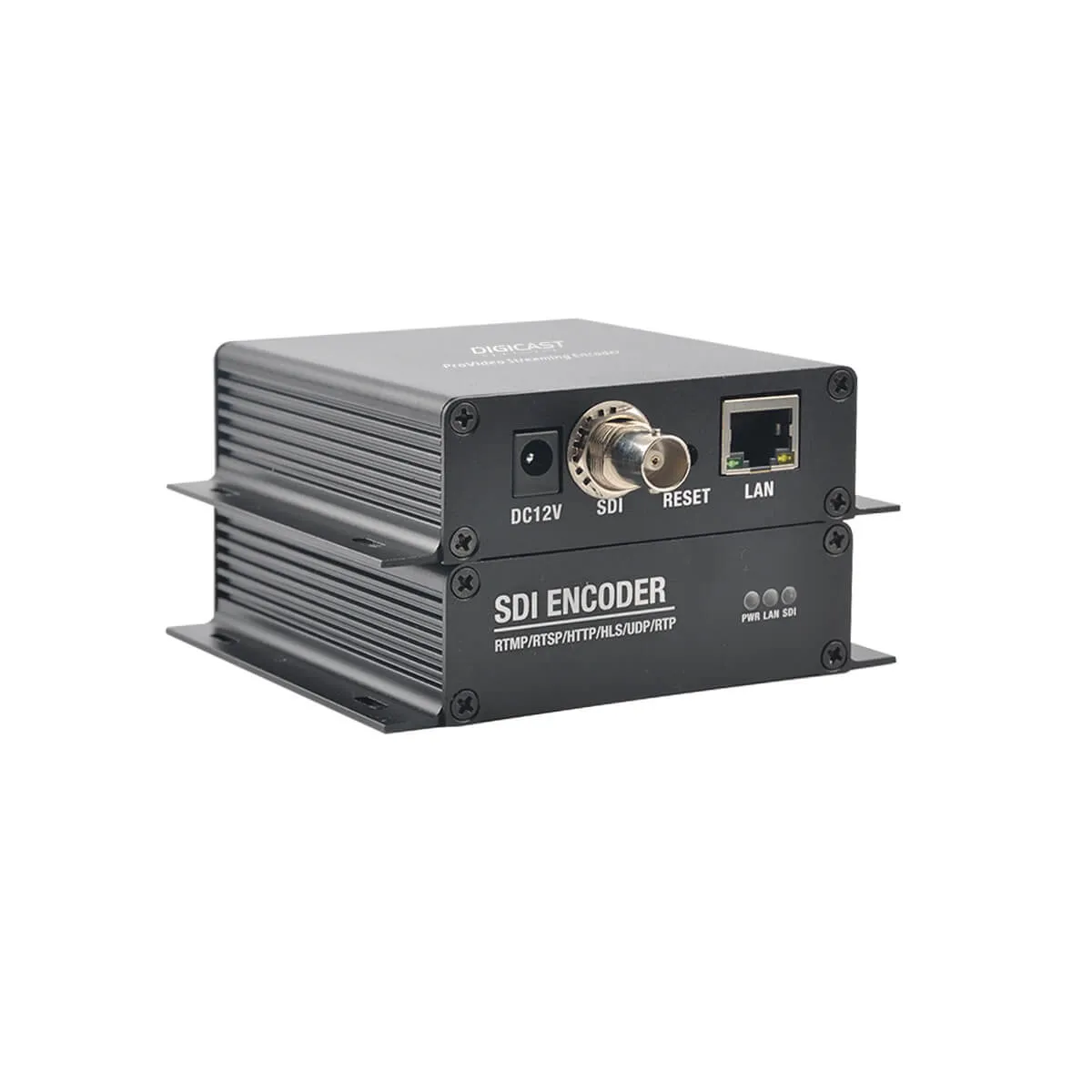

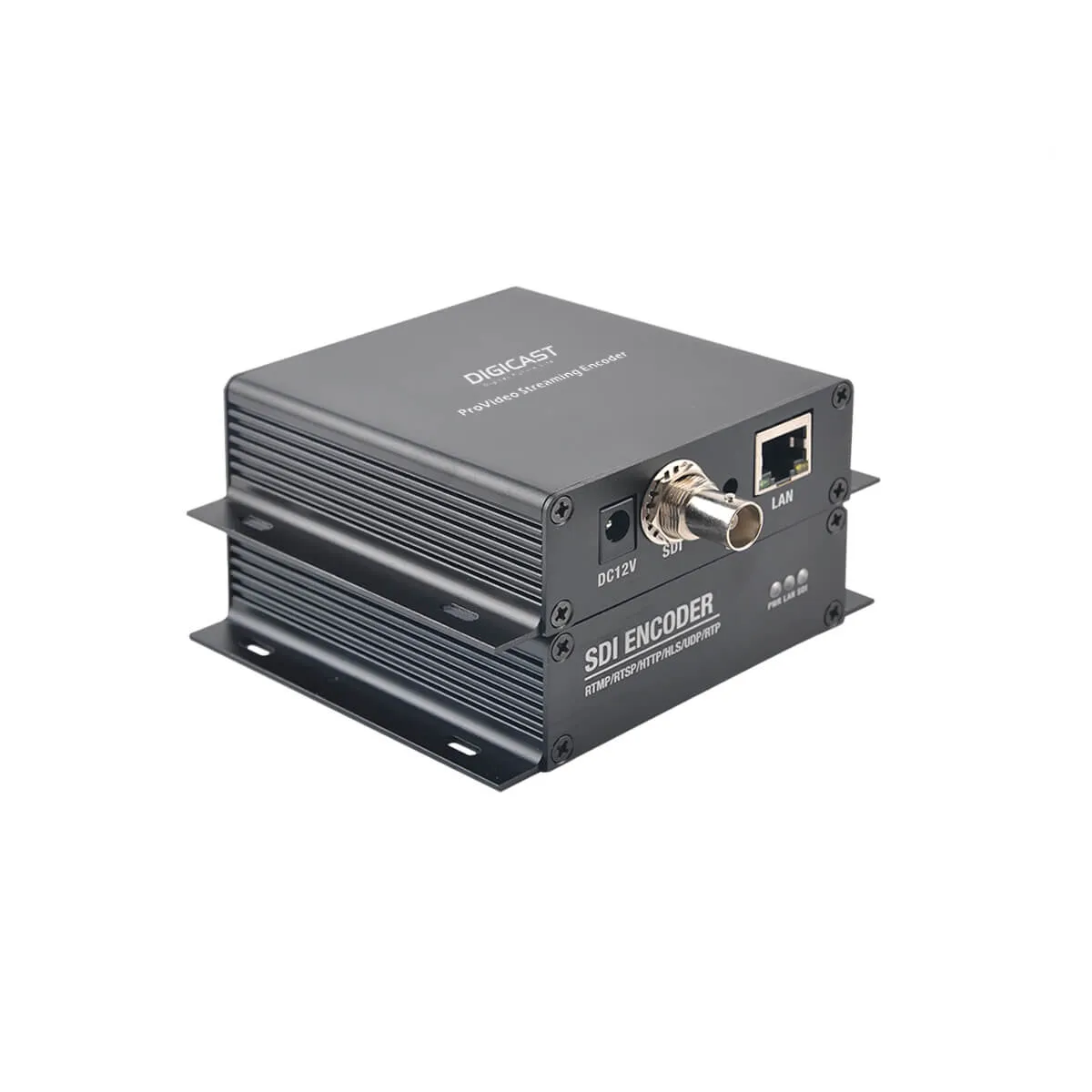

DMB-8800A Classic ProVideo Streaming Encoder(SDI in/loopout)
DMB-8800A Plus ProVideo Streaming Encoder(HDMI in/loopout)
DMB-8800A Enhanced ProVideo Streaming Encoder(HDMI/VGA/AV/YPbPr in)
DMB-8800A Premium ProVideo Streaming Encoder(HDMI CVBS)
DMB-8800A Premium2 ProVideo Streaming Encoder(HDMI 2*CVBS)

Overview

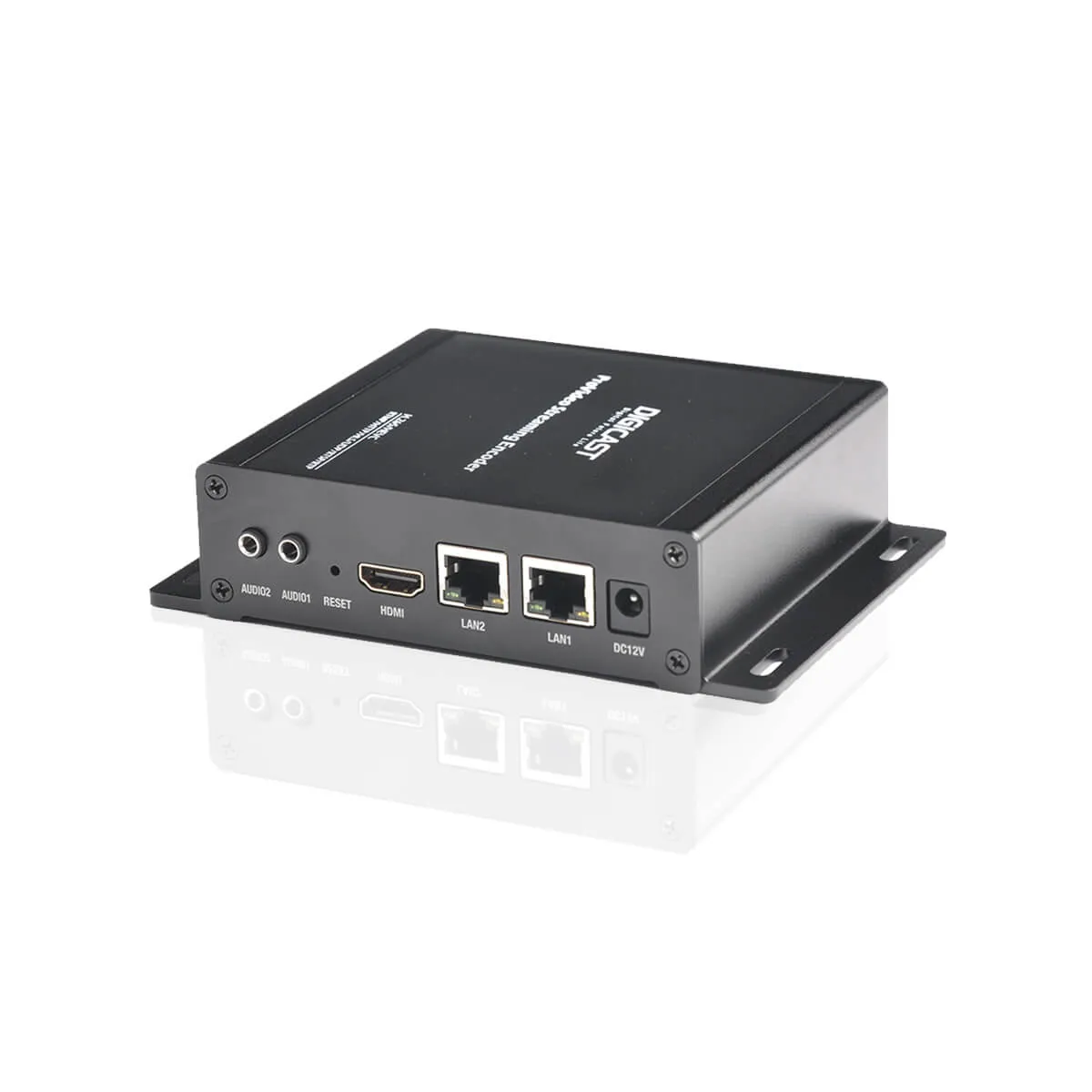

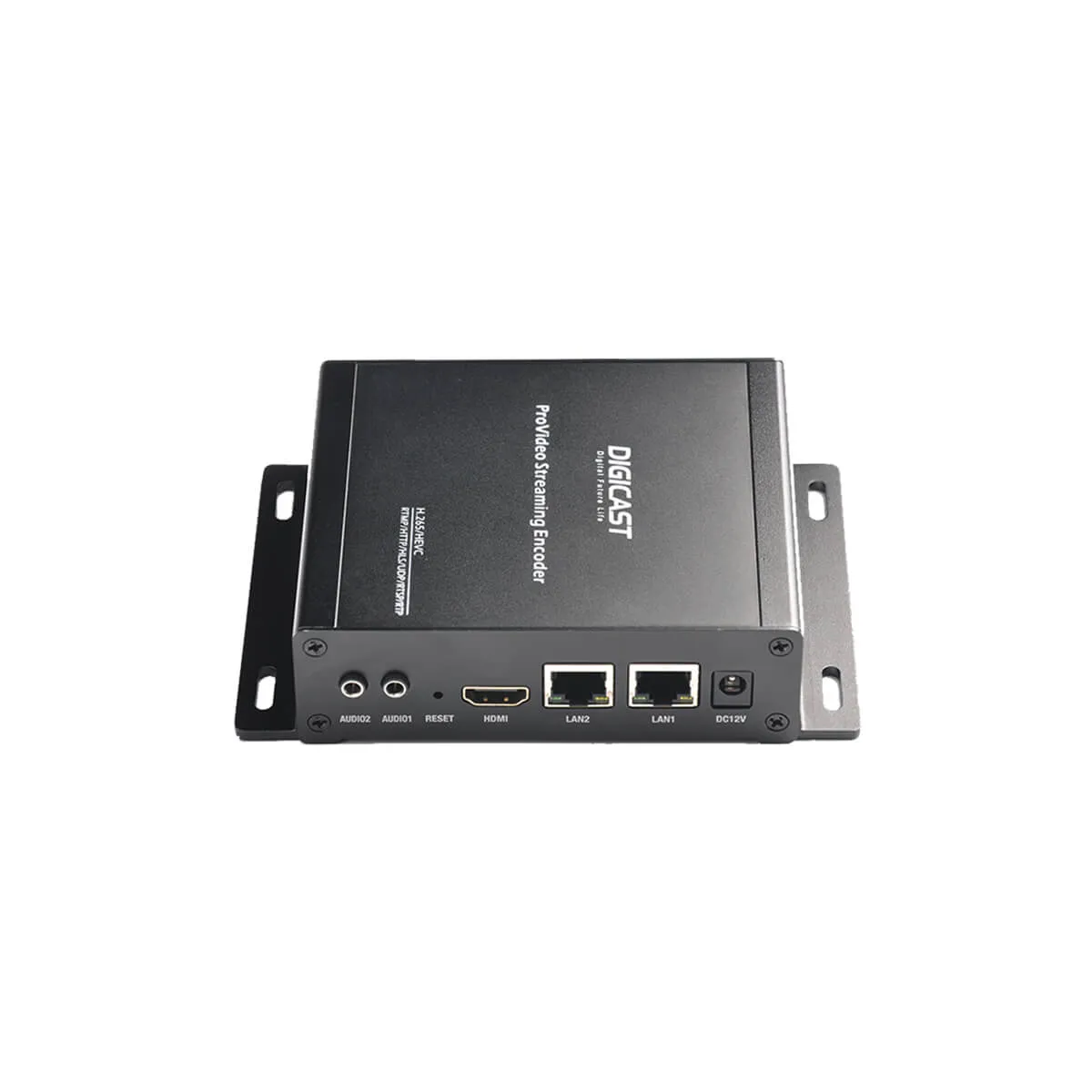

DMB-8800A Premium2 Mini Provideo Streaming Encoder, compared to DMB-8800A Classic, the DMB-8800A Premium2 accepts both HDMI and 2*CVBS (AV) input working at the same time. Meanwhile, it outputs 12 channels stream by TS over IP transmission in H.264 Compression(Video), AAC, MP3 Compression(audio) with different resolution and protocols for delivering services to multiple Internet connected devices at the same time, including smartphones, tablets, different size TVs and other mobile device. With powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate within limited bandwidth. It can be applied to education, health care, IPTV & OTT, conference, remote education, news interview, court, public security, banking, transportation and other industry applications.

FEATURES

◉Support 1 channel HDMI 2 channel CVBS input working at the same time.
◉Support up to 12 TS over IP stream out.
◉Support H.264 Main Profile/H.264 High Profile and MP3 & AAC audio compression
Bitrate mode: CBR/VBR
◉Capable of image parameter settings
◉Switchable of audio output mode: Left, right and Stereo
◉Configurable of Multi-rate, Multi-resolution, Multi-protocol
◉Providing RTSP/HTTP/UDP or RTMP protocol
◉Compatible with HDCP
◉Any terminal devices/decoders can have streams from IPTV Streaming Encoder
directly by RTMP protocol with software players (such as VLC).
◉Support ONVIF Network Video Protocol
◉System supports WINDOWS XP/VISTA/SERVER2003/SERVER2008/WIN7 32 and WIN7 64, LINUX
◉Web-based management
◉Full-duplex mode 1000M

APPLICATIONS

◉IPTV system
◉OTT system
◉Internet TV
◉Digital Signage Project
◉Remote Video Conference
◉Video Monitoring
